Test
Nominal  Pressure(PSI)	125
Strengh Testing(PSI)	350
Seal Testing(PSI)	200



Application
Face to Face	MSS-SP-71
Flange	ANSI B1.6/B16.10



Parts Name	Material
Valve Body/Bonnet	Cast iron, GG25
Disc	Cast iron, Cast bronze, Stainless  Steel
Stem	Steel, Stainless Steel, Brass
Hand Weel	GG25, Ductile iron

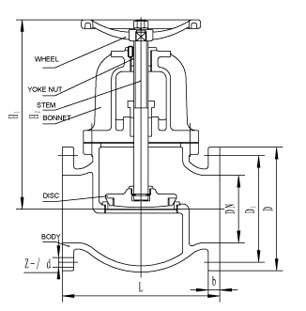

DN	L	H1	D	D1
50	203	279	152	120.7
65	216	298	178	139.5
80	240	333	190	152.5
100	292	391	229	190.5
125	330	438	254	216
150	355	491	279	241.5
200	495	641	343	298.5
250	622	775	406	362
