Test
Nominal Pressure	1.6
Strengh Testing	2.4
Seal Testing	1.76



Application
Face to Face	DIN 3202-F1
Flange	DIN 2532/2533

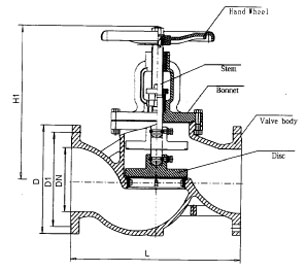

Parts Name	Material
Valve Body/Bonnet	Cast iron, GG25
Disc	Cast iron, Cast bronze, Stainless  Steel
Stem	Steel, Stainless Steel, Brass
Hand Wheel	GG25, Ductile iron



DN	L	H1	D	D1
15	130	185	95	65
20	150	179	105	75
25	160	200	115	85
32	180	233	140	100
40	200	247	150	110
50	230	268	165	125
65	290	306	185	145
80	310	363	200	160
100	350	397	220	180
125	400	472	250	210
150	480	514	285	240
200	600	576	340	295
250	730	680	405	355
300	850	750	460	410
